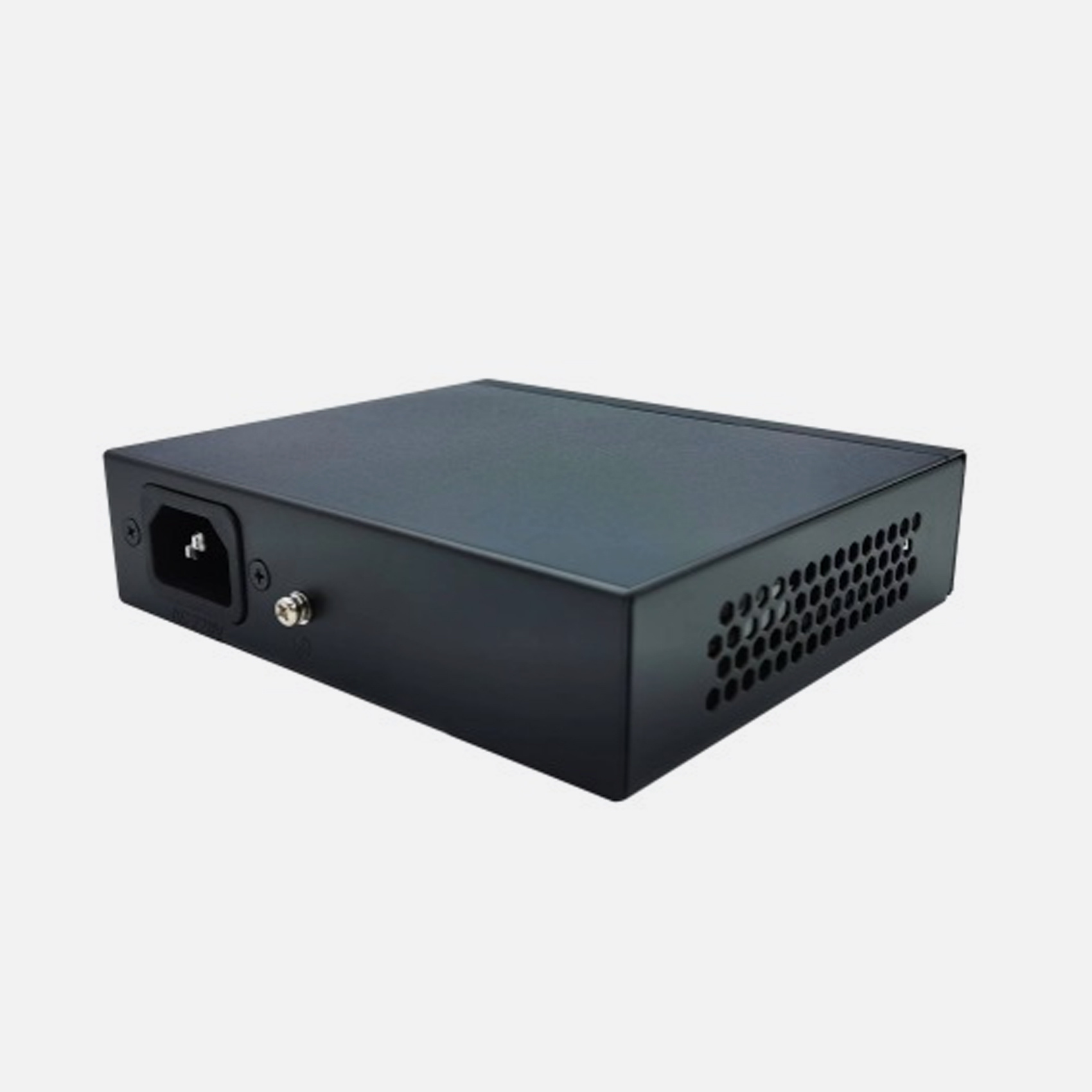

4+1 Megabit Gigabit POE Switches

The product design conforms to the Ethernet standard, with stable and reliable performance. It adopts store-and-forward mode and automatically learns and updates MAC address, which comprehensively improves the transmission and switching performance of the network. At the same time, the device provides POE power supply, so that the receiving device does not need external equipment, only a network cable

Category:

E-mail:

Introduction

The product design conforms to the Ethernet standard, with stable and reliable performance. It adopts store-and-forward mode and automatically learns and updates MAC address, which comprehensively improves the transmission and switching performance of the network. At the same time, the device provides POE power supply, so that the receiving device does not need external equipment, only a network cable, you can transmit power and network data at the same time, the wiring is very simple and convenient, can effectively reduce the construction costs and improve construction efficiency. This product is compatible with all mainstream cameras on the market, widely used in small and medium-sized network access layer, convergence layer, core layer, compatible with computers, printers, webcams, wireless AP, can be extended to the multimedia transmission system, wireless network transmission, industry broadband network and other network equipment. The project is suitable for enterprise, security, traffic, power grid, mineral industry, water conservancy oil field, small business, Internet cafes, hotels and schools and other related data transmission field, the scene of a wide range of applications.

Features

◆ 4 10/100M adaptive POE ports + 1 10/100M uplink port

◆ POE standard power supply 12+ 36-, intelligent identification of power supply, not burn equipment

◆ Built-in high-power power supply, support 250m long-distance power supply

◆ Network protocols IEEE802.3 (Ethernet), EEE802.3u (Fast Ethernet), IEEE802.3x (flow control)

◆ Supports IEEE802.3af and IEEE802.3at network protocols

◆ Automatically adapts to 10/100Mbps environments for easy network upgrades

◆ Automatic adaptation of cross-wire and through-wire, convenient for system debugging and installation

◆ Support full-duplex and half-duplex network communication, automatic port rollover and automatic rate negotiation.

◆ Anti-deadline monitoring and automatic reset function, suitable for heavy load applications such as HD network cameras.

◆ Super heat dissipation, long service life

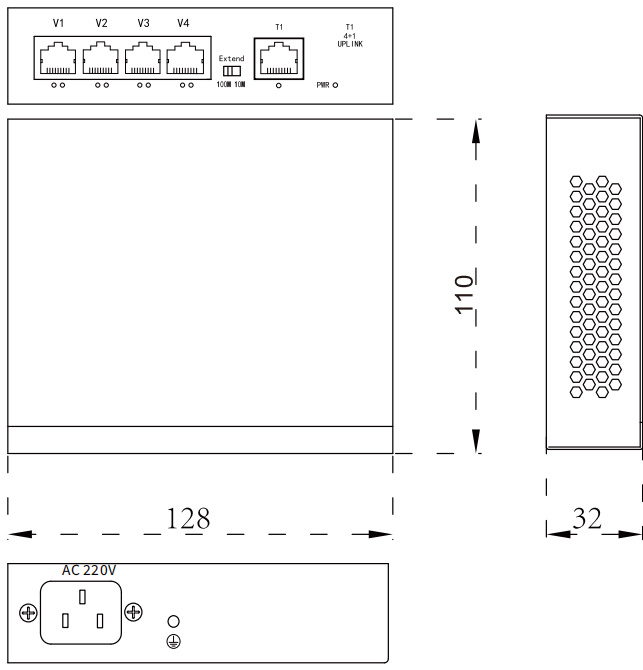

Product type: 100M POE Ethernet switch	Port description: 4 10/100M POE electrical ports + 2 10/100M uplink electrical ports
Input voltage: AC 110V~264V	Machine power consumption: <52W at full load
MTBF: 100,000 hours	Working/storage temperature: -10℃~+70℃
Relative humidity: 5%~95% (no condensation)	Indicator lights: red light (power indicator), blue light (link, data)
Power supply: DC 52V 1A	Optical module: not included (supports expansion)

Exchange method: store-and-forward	Switching capacity: 1.6Gbps
Packet forwarding rate: 1.1904Mbps	MAC address table: 1K
Flow control: supported	Forwarding delay: <5us
Polarity reversal: supported	Network standards: 1EEE802.3, 1EEE802.3u, 1EEE802.3x

Parameters

◆ 4 10/100M adaptive POE ports + 1 10/100M uplink port

◆ POE standard power supply 12+ 36-, intelligent identification of power supply, not burn equipment

◆ Built-in high-power power supply, support 250m long-distance power supply

◆ Network protocols IEEE802.3 (Ethernet), EEE802.3u (Fast Ethernet), IEEE802.3x (flow control)

◆ Supports IEEE802.3af and IEEE802.3at network protocols

◆ Automatically adapts to 10/100Mbps environments for easy network upgrades

◆ Automatic adaptation of cross-wire and through-wire, convenient for system debugging and installation

◆ Support full-duplex and half-duplex network communication, automatic port rollover and automatic rate negotiation.

◆ Anti-deadline monitoring and automatic reset function, suitable for heavy load applications such as HD network cameras.

◆ Super heat dissipation, long service life

Product type: 100M POE Ethernet switch	Port description: 4 10/100M POE electrical ports + 2 10/100M uplink electrical ports
Input voltage: AC 110V~264V	Machine power consumption: <52W at full load
MTBF: 100,000 hours	Working/storage temperature: -10℃~+70℃
Relative humidity: 5%~95% (no condensation)	Indicator lights: red light (power indicator), blue light (link, data)
Power supply: DC 52V 1A	Optical module: not included (supports expansion)

Exchange method: store-and-forward	Switching capacity: 1.6Gbps
Packet forwarding rate: 1.1904Mbps	MAC address table: 1K
Flow control: supported	Forwarding delay: <5us
Polarity reversal: supported	Network standards: 1EEE802.3, 1EEE802.3u, 1EEE802.3x
