2.4G 1 KM Megabit Wireless Bridge Parameters

2.4G outdoor wireless CPE series products can realize point-to-point and point-to-multipoint long-distance wireless transmission, which can meet the demand for long-distance wireless coverage in large and open environment such as elevators, mountainous areas, factories, construction sites, piers, tower cranes, parks, squares and so on. With only one operator access cost, you can enjoy high-quality wireless network coverage in multiple places, which can realize long-distance video surveillance data transmission back to the scattered distribution of video surveillance, unified in the monitoring center for real-time viewing and centralized management.

Category:

E-mail:

Introduction

2.4G outdoor wireless CPE series products can realize point-to-point and point-to-multipoint long-distance wireless transmission, which can meet the demand for long-distance wireless coverage in large and open environment such as elevators, mountainous areas, factories, construction sites, piers, tower cranes, parks, squares and so on. With only one operator access cost, you can enjoy high-quality wireless network coverage in multiple places, which can realize long-distance video surveillance data transmission back to the scattered distribution of video surveillance, unified in the monitoring center for real-time viewing and centralized management.

Features

◆ Adopting industrial-grade overall chip solution, 1 M NorFash, 64M memory;

◆ High transmit power, 2.4G external unidirectional antenna 10 DBi, built-in power 19DBm;

◆ Support AP/relay mode, support DHCP way/static configuration way to get IP address;

◆ Fat and thin AP integration, support equipment local WEB management;

◆ POE interface, support 24V non-standard POE power supply, DC power supply (interface support DC8V-24V);

◆ Camera distribution location to the monitoring center to form the angle less than 60 degrees, you can consider the point-to-multipoint, reduce the transmitting end of the bridge to reduce costs but the prerequisite to meet the angle and demand.

Technical Parameters

main characteristic	operating bands:	2412MHz-2472MHz	WIFI Transmission Protocol.	802. 11a/n/ac
	FLASH：	8MB	Programs:	MTK
	Built-in antenna:	Directional Flat Antenna, Gain: 14dBi	Maximum wireless rate:	300Mbps
	2.4G EVM：	802. 11a:≤-25dB; 802. 11n:≤-28dB; 802. 11ac:≤-32dB;
	Frequency bias:	±10ppm	Press the button:	reset button (press and hold for 6-10 seconds to restore factory default configuration)
	Interface:	LAN0/POE：10/100Mbps；LAN1 ：10/100Mbps

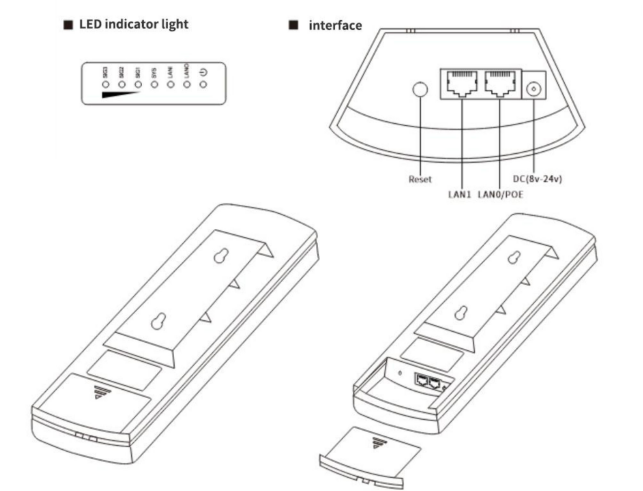

	Status Indicator:	Power Lamp, LAN1 Port Lamp, LAN2 Port Lamp, System Lamp, Signal Strength Lamp

Type	Key indicators	causality
mechanical property	Product Model:	DZ-COM100S- 2.4G/KM	POE Power:	24V 0.5 A
	DC：	8V~24V	Maximum overall power consumption:	<6W
	Surge testing:	differential mode：±2KV	Product Dimensions:	217mm100mm60mm
	Working humidity:	10%~90%RH non-condensing	Storing Humidity:	5%~90%RH non-condensing
	Working temperature:	-30℃-- +55℃	Storage temperature:	-40℃ -- +70℃
	Lightning protection:	4kV lightning protection, 15kV ESD protection	Dustproof and waterproof:	ABS Engineering plastic housing, IP65 rated dust and water resistant

2.4Gwireless power	802.11a	54M	17±2dBm	6M	19±2dBm
	802.11n Ht20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n Ht40	MCS7	15±2dBm	MCS0	17±2dBm
2.4G Receiving Sensitivity	802.11a	54M	-70dBm	1M	-92dBm
	802.11n Ht20	MCS7	-68dBm	6M	-90dBm
	802.11n Ht40	MCS7	-66dBm	MCS0	-88dBm

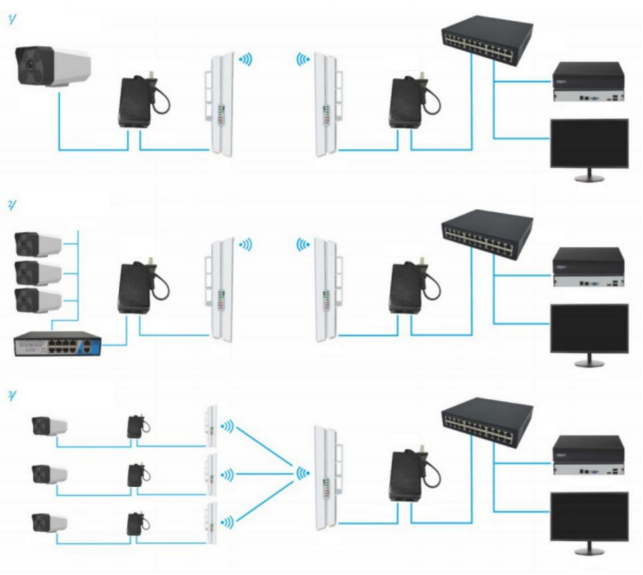

Note: The panel is subject to the actual product schematic connection diagrams

distance	100M		500M		1KM
	2M	4M	2M	4M	2M	4M
2.4G	2月3日	1月2日	2月3日	1月2日	1月2日	1
Megabit
1KM

Note: The above data is for reference, according to the site environment, the number of cameras can be more or less.
