5.8G 10KMFull Gigabit Wireless Bridge Parameters
5.8G Outdoor Wireless CPE Column with 500+ Mbps Throughput - Based on 802. 11ac standard protocol and iPoll protocol developed by TBXAC, using a high pass CPU (750MHZ) and Qualcomm 9882 wireless module, 64 MBytes RAM and 16 MBytes flash memory, TBXAC is the first choice for high bandwidth demanding applications. It is the powerful hardware configuration that makes the TBX9000AC20 the first choice for high bandwidth demanding applications, and is suitable for both point-to-point and point-to-multipoint applications. It is suitable for both point-to-point and point-to-multipoint scenarios. The TBX9000AC20 can satisfy the need for long-distance wireless coverage in wide-area and open environments, such as elevators, mountainous areas, workplaces, docks, cranes, parks, and stadiums. You can enjoy high-quality wireless network coverage in multiple locations at a single carrier access cost, realize long-distance video surveillance data return, and realize scattered video surveillance. It also enables remote video surveillance data transmission and real-time viewing and centralized management of scattered video surveillance at the monitoring center.
Category:
E-mail:
Introduction
-
5.8G Outdoor Wireless CPE Column with 500+ Mbps Throughput - Based on 802. 11ac standard protocol and iPoll protocol developed by TBXAC, using a high pass CPU (750MHZ) and Qualcomm 9882 wireless module, 64 MBytes RAM and 16 MBytes flash memory, TBXAC is the first choice for high bandwidth demanding applications. It is the powerful hardware configuration that makes the TBX9000AC20 the first choice for high bandwidth demanding applications, and is suitable for both point-to-point and point-to-multipoint applications. It is suitable for both point-to-point and point-to-multipoint scenarios. The TBX9000AC20 can satisfy the need for long-distance wireless coverage in wide-area and open environments, such as elevators, mountainous areas, workplaces, docks, cranes, parks, and stadiums. You can enjoy high-quality wireless network coverage in multiple locations at a single carrier access cost, realize long-distance video surveillance data return, and realize scattered video surveillance. It also enables remote video surveillance data transmission and real-time viewing and centralized management of scattered video surveillance at the monitoring center.
Features
-

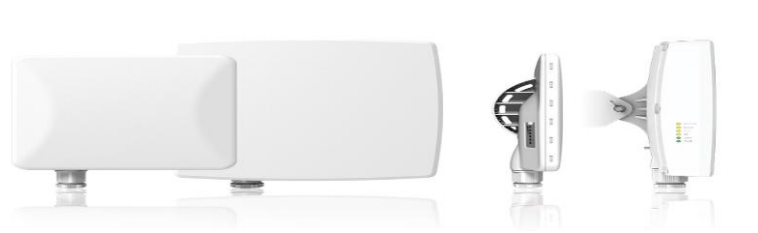

New Design
The new design of the device and the overall package is compact and lightweight, IP-66 waterproof, and designed to be completely free of metal materials, including screws, so there is no need to be concerned about corrosion or rust.
Flexible Installation
The mounting kit allows for accurate angle adjustment, simple assembly and flexible installation. Consisting of two simple connecting parts, it allows the unit to be tilted up and down on the clamping bar. Thickened components provide enhanced corrosion
Technical Parametersmain
characteristic
WLAN
standards:
IEEE 802. 11 a/n/ac, iPoll
Transmission Mode.
iPoll MIMO 2x2
Transmit power:
Up to 30dBm (varying from region to region)
Reception
sensitivity:
-97 ~ -75dBm (Varies by modulation method()
radio
frequency band：
5 GHz : 5.150 - 5.850 GHz (FCC 5.150 - 5.250 和 5.725 - 5.850Ghz)
channel
bandwidth：
5, 10, 20, 40,80 MHZ
modulation method:
802. 11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802. 11 ac:OFDM (256-QAM, 64-QAM, 16-QAM,QPSK,BPSK)
data rate:
802. 11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30Mbps
802. 11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps
Error
Correction Methods:
FEC ，LDPC
duplex mode:
time division duplex
Type
Key indicators:
causality
built-in
antenna
operating
frequency：
5.1- 5.9Ghz
gain (electronics):
27dBi

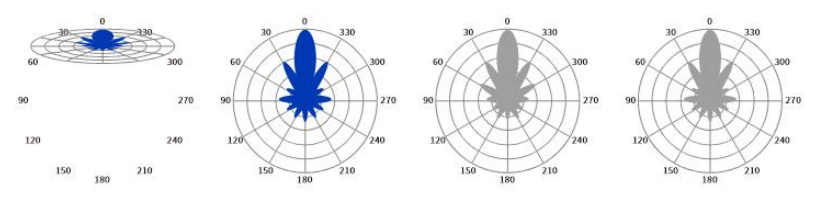

polarization mode：
Vertical/Horizontal Dual Polarization
cross-polarization isolation :
27dBi
Maximum VSWR:
<1.8
Horizontally
polarized flap angle:
10°
Vertically
polarized flap angle:
10°
Longitudinal flap angle:
10°
Number of cameras that can be taken one-to-onedistance
100M
500M
1KM
2KM
3KM
5KM
7KM
8-9KM
10KM
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
5.8G 1000M
10KM
50
30
50
30
50
30
50
30
50
30
40
30
30
20
10
5
5
2
Note: The above data for reference, according to the site environment, the number of cameras can be more or less.
Type
Key indicators
causality
mechanical property
Product Model:
DZ-COM-5.8G/10KM
Interface:
10/100/1000 Base-T, Rj45
Type:
Integrated dual-polarized directional flat panel antenna
Gain:
20dBi

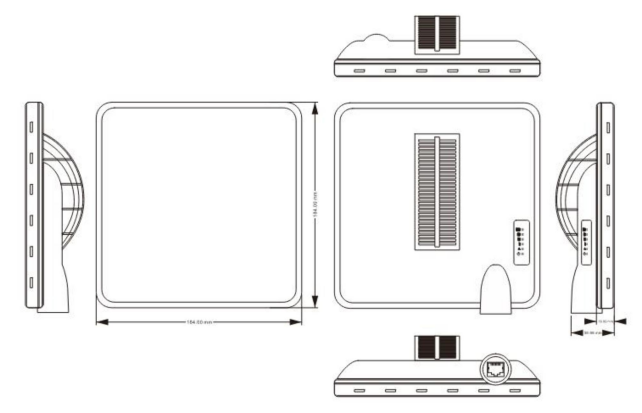

Size:
184 mm (L)× 184 mm (W)× 80 mm (H)
Weight:
413g
Installation:
Holding bar mounting rings included
The equipment is powered:
24V DC Passive POE (Product comes with 24V passive POE adapter)
Power:
100 – 240V AC
Power
consumption:
10W
Temperature
-40°C ~ +65°C
Humidity:
0 ~ 90 % ( non-condensing)
System
monitoring
SNMP ，Syslog ，Web UI ，WNMS
Configuration:
Web UI ，WNMS
Certifications
Conforms to FCC/IC/CE standards
Dustproof,
waterproof:
ABS engineering plastic housing, IP66 rated dust and water resistant
Note: The panel is based on the real thing
-
Technical Parameters
main
characteristic
5G operating bands:
5180MHz-5805MHz
5G WIFI
Transmission Protocol.
802. 11a/n/ac
FLASH：
8MB
Programs:
MTK
Built-in antenna:
Directional Flat Antenna, Gain: 14dBi
Maximum wireless
rate:
900Mbps
5G EVM：
802. 11a:≤-25dB; 802. 11n:≤-28dB; 802. 11ac:≤-32dB;
Frequency bias:
±10ppm
Press the button:
reset button (press and hold for 6-10 seconds to restore factory default configuration)

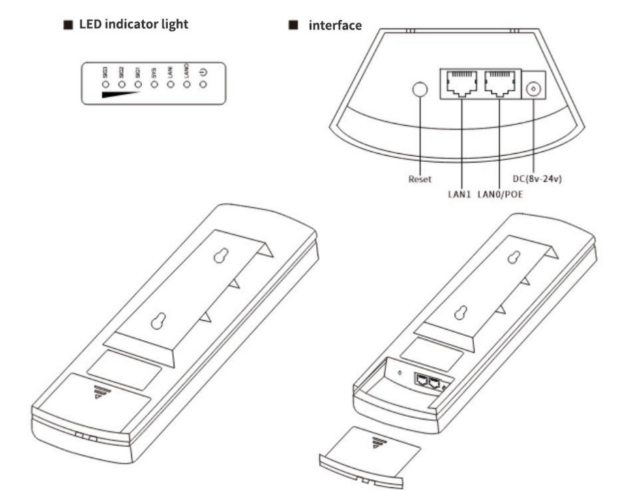

Interface:
LAN0/POE：10/100/1000Mbps；LAN1 ：10/100/1000Mbps
Status Indicator:
Power Lamp, LAN1 Port Lamp, LAN2 Port Lamp, System Lamp, Signal Strength Lamp
Type
Key indicators
causality
mechanical
property
Product Model:
DZ-COM1000-5.8G/5KM
POE Power:
24V 1A
DC：
8V~24V
Maximum overall power
consumption:
<10W
Surge testing:
differential mode：±2KV
Product
Dimensions:
217mm*100mm*60mm
Working
humidity:
10%~90%RH non-condensing
Storing Humidity:
5%~90%RH non-condensing
Working
temperature:
-30℃-- +55℃
Storage
temperature:
-40℃ -- +70℃
Lightning
protection:
4kV lightning protection, 15kV ESD protection
Dustproof and waterproof:
ABS Engineering plastic housing, IP65 rated dust and water resistant
5G wireless power
802. 11a
54M
17±2dBm
6M
19±2dBm
802. 11n Ht20
MCS7
16±2dBm
MCS0
18±2dBm
802. 11n Ht40
MCS7
15±2dBm
MCS0
17±2dBm
802. 11n Ht80
MCS9
14±2dBm
MCS0
16±2dBm
5G
Receiving
Sensitivity
802. 11a
54M
-70dBm
1M
-92dBm
802. 11n Ht20
MCS7
-68dBm
6M
-90dBm
802. 11n Ht40
MCS7
-66dBm
MCS0
-88dBm
802. 11n Ht80
MCS9
-58dBm
MCS0
-85dBm
Note: The panel is subject to the actual product schematic connection diagrams
distance
1KM
2KM
3KM
4KM
5KM
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
5.8G
Gigabit
5KM
50
30
40
30
35
25
20
10
2-3
2
Note:The above data is for reference,according to the site environment,the number of cameras can be more or less.
Parameters
-
New Design
The new design of the device and the overall package is compact and lightweight, IP-66 waterproof, and designed to be completely free of metal materials, including screws, so there is no need to be concerned about corrosion or rust.
Flexible Installation
The mounting kit allows for accurate angle adjustment, simple assembly and flexible installation. Consisting of two simple connecting parts, it allows the unit to be tilted up and down on the clamping bar. Thickened components provide enhanced corrosion
Technical Parametersmain
characteristic
WLAN
standards:
IEEE 802. 11 a/n/ac, iPoll
Transmission Mode.
iPoll MIMO 2x2
Transmit power:
Up to 30dBm (varying from region to region)
Reception
sensitivity:
-97 ~ -75dBm (Varies by modulation method()
radio
frequency band：
5 GHz : 5.150 - 5.850 GHz (FCC 5.150 - 5.250 和 5.725 - 5.850Ghz)
channel
bandwidth：
5, 10, 20, 40,80 MHZ
modulation method:
802. 11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802. 11 ac:OFDM (256-QAM, 64-QAM, 16-QAM,QPSK,BPSK)
data rate:
802. 11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30Mbps
802. 11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps
Error
Correction Methods:
FEC ，LDPC
duplex mode:
time division duplex
Type
Key indicators:
causality
built-in
antenna
operating
frequency：
5.1- 5.9Ghz
gain (electronics):
27dBi
polarization mode：
Vertical/Horizontal Dual Polarization
cross-polarization isolation :
27dBi
Maximum VSWR:
<1.8
Horizontally
polarized flap angle:
10°
Vertically
polarized flap angle:
10°
Longitudinal flap angle:
10°
Number of cameras that can be taken one-to-onedistance
100M
500M
1KM
2KM
3KM
5KM
7KM
8-9KM
10KM
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
5.8G 1000M
10KM
50
30
50
30
50
30
50
30
50
30
40
30
30
20
10
5
5
2
Note: The above data for reference, according to the site environment, the number of cameras can be more or less.
Type
Key indicators
causality
mechanical property
Product Model:
DZ-COM-5.8G/10KM
Interface:
10/100/1000 Base-T, Rj45
Type:
Integrated dual-polarized directional flat panel antenna
Gain:
20dBi
Size:
184 mm (L)× 184 mm (W)× 80 mm (H)
Weight:
413g
Installation:
Holding bar mounting rings included
The equipment is powered:
24V DC Passive POE (Product comes with 24V passive POE adapter)
Power:
100 – 240V AC
Power
consumption:
10W
Temperature
-40°C ~ +65°C
Humidity:
0 ~ 90 % ( non-condensing)
System
monitoring
SNMP ，Syslog ，Web UI ，WNMS
Configuration:
Web UI ，WNMS
Certifications
Conforms to FCC/IC/CE standards
Dustproof,
waterproof:
ABS engineering plastic housing, IP66 rated dust and water resistant
Note: The panel is based on the real thing
-
Technical Parameters
main
characteristic
5G operating bands:
5180MHz-5805MHz
5G WIFI
Transmission Protocol.
802. 11a/n/ac
FLASH：
8MB
Programs:
MTK
Built-in antenna:
Directional Flat Antenna, Gain: 14dBi
Maximum wireless
rate:
900Mbps
5G EVM：
802. 11a:≤-25dB; 802. 11n:≤-28dB; 802. 11ac:≤-32dB;
Frequency bias:
±10ppm
Press the button:
reset button (press and hold for 6-10 seconds to restore factory default configuration)
Interface:
LAN0/POE：10/100/1000Mbps；LAN1 ：10/100/1000Mbps
Status Indicator:
Power Lamp, LAN1 Port Lamp, LAN2 Port Lamp, System Lamp, Signal Strength Lamp
Type
Key indicators
causality
mechanical
property
Product Model:
DZ-COM1000-5.8G/5KM
POE Power:
24V 1A
DC：
8V~24V
Maximum overall power
consumption:
<10W
Surge testing:
differential mode：±2KV
Product
Dimensions:
217mm*100mm*60mm
Working
humidity:
10%~90%RH non-condensing
Storing Humidity:
5%~90%RH non-condensing
Working
temperature:
-30℃-- +55℃
Storage
temperature:
-40℃ -- +70℃
Lightning
protection:
4kV lightning protection, 15kV ESD protection
Dustproof and waterproof:
ABS Engineering plastic housing, IP65 rated dust and water resistant
5G wireless power
802. 11a
54M
17±2dBm
6M
19±2dBm
802. 11n Ht20
MCS7
16±2dBm
MCS0
18±2dBm
802. 11n Ht40
MCS7
15±2dBm
MCS0
17±2dBm
802. 11n Ht80
MCS9
14±2dBm
MCS0
16±2dBm
5G
Receiving
Sensitivity
802. 11a
54M
-70dBm
1M
-92dBm
802. 11n Ht20
MCS7
-68dBm
6M
-90dBm
802. 11n Ht40
MCS7
-66dBm
MCS0
-88dBm
802. 11n Ht80
MCS9
-58dBm
MCS0
-85dBm
Note: The panel is subject to the actual product schematic connection diagrams
distance
1KM
2KM
3KM
4KM
5KM
2M
4M
2M
4M
2M
4M
2M
4M
2M
4M
5.8G
Gigabit
5KM
50
30
40
30
35
25
20
10
2-3
2
Note:The above data is for reference,according to the site environment,the number of cameras can be more or less.
