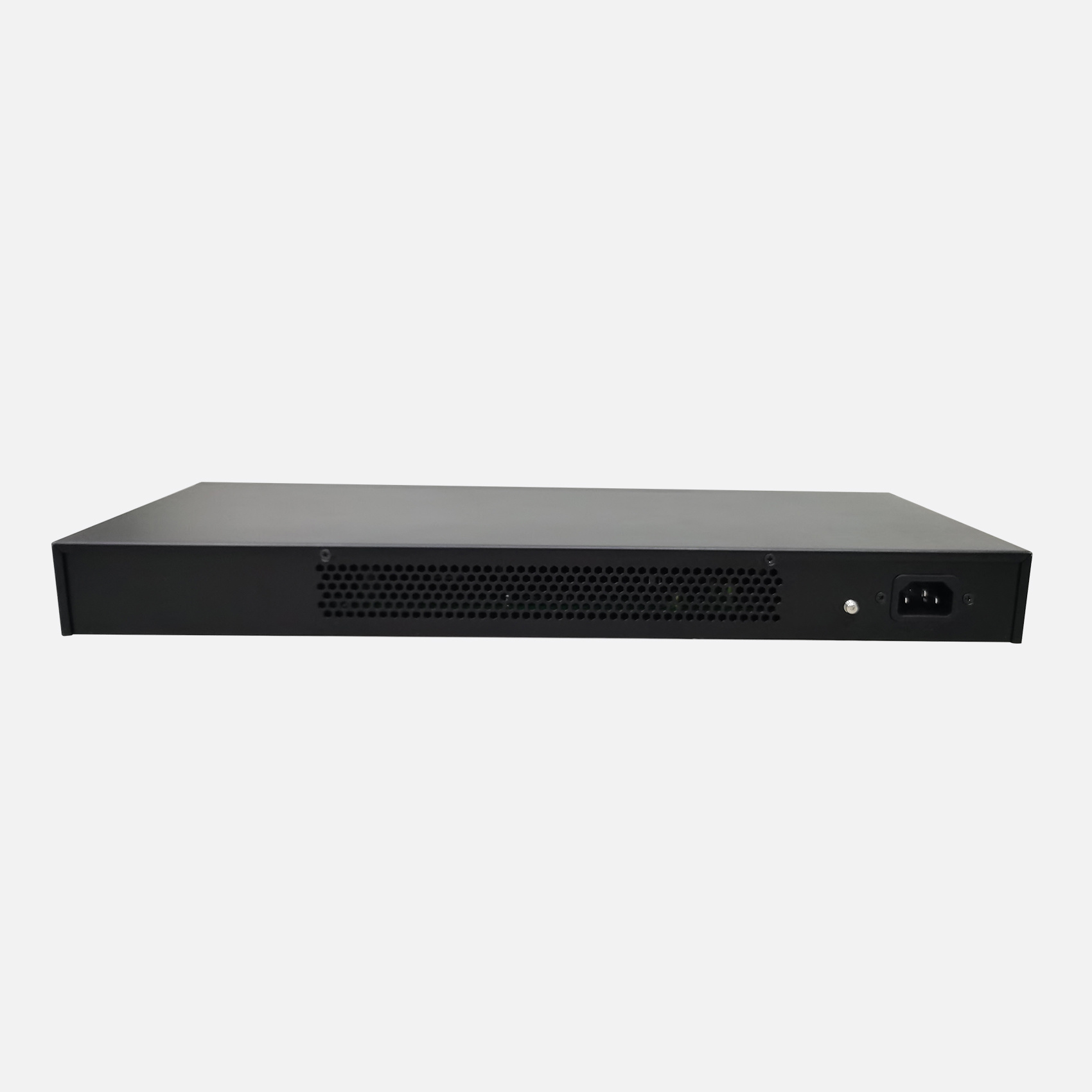

Layer 2 Managed 24+4 Combo Gigabit Switch - Rackmount

Layer 2 Managed 24+4 Combo Gigabit Switch - Rackmount

The product design conforms to the Ethernet standard, with stable and reliable performance. It adopts store-and-forward mode and automatically learns and updates MAC address, which comprehensively improves the transmission and switching performance of the network.

Category:

E-mail:

Introduction

The product design conforms to the Ethernet standard, with stable and reliable performance. It adopts store-and-forward mode and automatically learns and updates MAC address, which comprehensively improves the transmission and switching performance of the network. It can automatically adapt to the network environment, which is convenient for installation and debugging. High-quality metal shell, super heat dissipation, greatly extends the service life. Plug-and-play fast switching, all ports support wire-speed forwarding and MDI/MDIX auto-flip function. The series of switches support port mirroring, VLAN, igmp, QoS, Stp/Rstp, port aggregation and other rich Layer 2 software features and a series of practical management methods, dynamic LED indicators to provide simple working status and troubleshooting. The port can automatically identify parallel lines, cross lines, without the need for targeted settings so that the data in the transmission process of the optimal path, the highest efficiency. This product is compatible with all mainstream cameras on the market, widely used in small and medium-sized network access layer, convergence layer, compatible with computers, printers, webcams, wireless AP, can extend the multimedia transmission system, wireless network transmission, industry broadband private network and other network equipment; and applicable to enterprises, security, transport, power grids, mineral industry, water conservancy and oil fields, small businesses, Internet cafes, hotels and schools. Relevant data transmission field, the scene of a wide range of applications.

Features

Management characteristics

Home page: Supports logo, interface panel, and system information display (supports changing LOGO, product model, and version number)
System: IP address settings, port settings, user accounts		Security: MAC address, broadcast storm
Monitoring: port statistics, cable diagnosis		Tools: firmware upgrade, configuration backup, save, restart
Configuration: VLAN, QOS, IGMP, link aggregation, loop protection, RSTP, port mirroring, port isolation, bandwidth control, jumbo frame, MAC constraints, Green Ethernet, IEEE, SNMP

Technical parameters

Product type: Layer 2 managed Ethernet switch	Port description: 24 10/100/1000M electrical ports, 4 100/1000M Combo ports
Input voltage: AC 110V~264V	Machine power consumption: <20W at full load
MTBF: 100,000 hours	Working/storage temperature: -10℃~+70℃
Relative humidity: 5%~95% (no condensation)

Functional characteristics

Exchange method: store-and-forward	Switching capacity: 166Gbps
Packet forwarding rate: 123.504Mpps	MAC address table: 10K
Flow control: supported	Forwarding delay: <5us
Polarity reversal: supported	RST reset button: Press and hold for 7 seconds to restore factory settings with one click

Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x

Network topology: supports ring topology, star topology, bus topology, tree topology, etc.

Parameters

Management characteristics

Home page: Supports logo, interface panel, and system information display (supports changing LOGO, product model, and version number)
System: IP address settings, port settings, user accounts		Security: MAC address, broadcast storm
Monitoring: port statistics, cable diagnosis		Tools: firmware upgrade, configuration backup, save, restart
Configuration: VLAN, QOS, IGMP, link aggregation, loop protection, RSTP, port mirroring, port isolation, bandwidth control, jumbo frame, MAC constraints, Green Ethernet, IEEE, SNMP

Technical parameters

Product type: Layer 2 managed Ethernet switch	Port description: 24 10/100/1000M electrical ports, 4 100/1000M Combo ports
Input voltage: AC 110V~264V	Machine power consumption: <20W at full load
MTBF: 100,000 hours	Working/storage temperature: -10℃~+70℃
Relative humidity: 5%~95% (no condensation)

Functional characteristics

Exchange method: store-and-forward	Switching capacity: 166Gbps
Packet forwarding rate: 123.504Mpps	MAC address table: 10K
Flow control: supported	Forwarding delay: <5us
Polarity reversal: supported	RST reset button: Press and hold for 7 seconds to restore factory settings with one click
